Introduction to STM32F767ZGT6
The STM32F767ZGT6 is a microcontroller from STMicroelectronics, designed for embedded applications that require high performance and advanced features. It is based on the ARM Cortex-M7 core operating at up to 216 MHz and features a range of peripherals, making it suitable for a wide range of applications.
Key Features
- ARM Cortex-M7 core operating at up to 216 MHz
- 2 MB of Flash memory
- 512 KB of SRAM
- Advanced peripherals including Ethernet, USB, and CAN
- Graphics support with LCD-TFT controller
Applications
The STM32F767ZGT6 is suitable for a wide range of embedded applications that require high performance and advanced features, including:
- Industrial control
- Medical equipment
- Robotics
- Audio and video processing
- Human-machine interfaces (HMIs)
Performance
The STM32F767ZGT6 is designed for high performance, with an ARM Cortex-M7 core operating at up to 216 MHz. The device features 2 MB of Flash memory and 512 KB of SRAM, providing ample storage for code and data. The device also features a range of advanced peripherals, allowing developers to design more complex and feature-rich systems.
The device includes advanced communication interfaces including Ethernet, USB, and CAN, enabling developers to design systems that can communicate with other devices and sensors. The device also features a graphics controller with an LCD-TFT interface, allowing developers to create sophisticated user interfaces with color graphics.
Development Tools
STMicroelectronics provides a range of development tools and software for the STM32F767ZGT6, including:
- STM32CubeMX software to configure the device and generate code
- STM32CubeIDE, an integrated development environment (IDE) for code development and debugging
- STM32 Nucleo and Discovery development boards for prototyping and development
- Evaluation boards for testing and evaluation
Conclusion
The STM32F767ZGT6 is a microcontroller that is ideal for embedded applications that require high performance and advanced features. Its high performance, advanced peripherals, and graphics support make it suitable for a wide range of applications in industrial control, medical equipment, robotics, audio and video processing, and HMIs. STMicroelectronics provides a range of development tools and software to support developers in their design and development activities.
Table of Specifications
| Specification | Value |
| Core | ARM Cortex-M7 core operating at up to 216 MHz |
| Flash memory | 2 MB |
| SRAM | 512 KB |
| Communication | Ethernet, USB, CAN |
| Graphics support | LCD-TFT controller |
| Development tools | STM32CubeMX, STM32CubeIDE, STM32 Nucleo and Discovery development boards, evaluation boards |
|
|

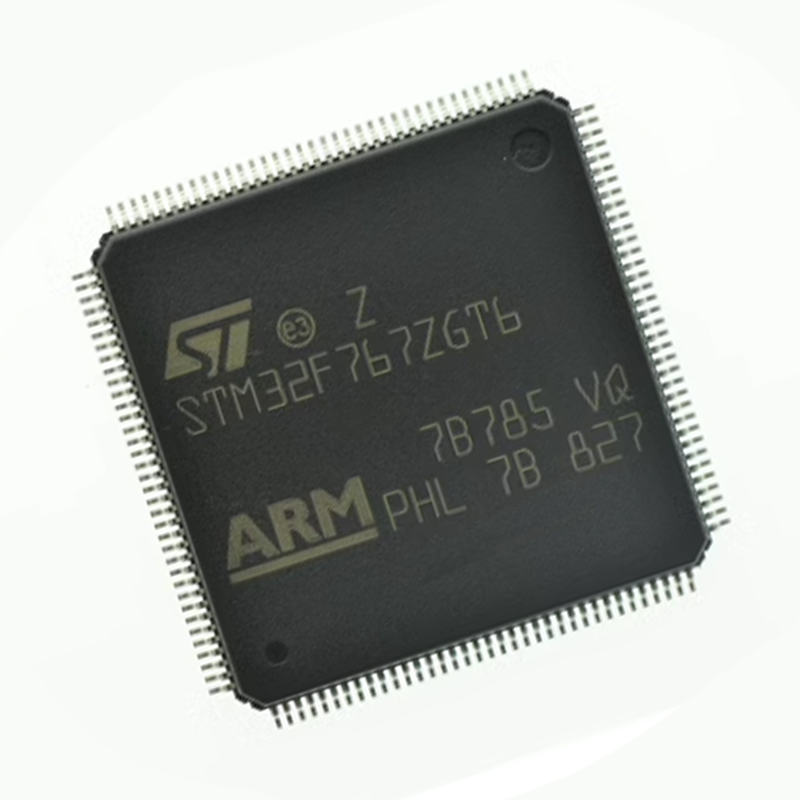

New Original ARM MCU STM32 STM32F767 STM32F767ZGT6 LQFP-144 Microcontroller In Stock Good Price Images
|
